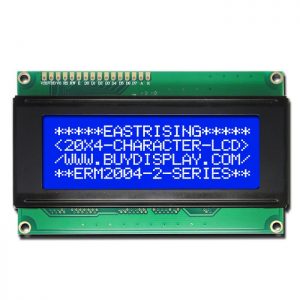

Description HD44780 compatible 20×4 White on Blue LCD Module. The typical operating voltage for these display modules is 5.0V. Technical Specifications Gross Weight (kg) 0.1000 Part Number 2004A Display Format 20×4 Character Interface 6800 4-bit Parallel , 6800 8-bit Parallel IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 Appearance White on Blue Diagonal Size No Connection Pin Header Outline Dimension 98.00(W)x60.0(H)x14.0(T)mm Visual Area 76.00×25.20mm Active Area 70.40(W)x20.80(H)mm Character Size 2.95×4.75mm Dot (Pixel) Size 0.55×0.55mm Dot (Pixel) Pitch 0.60×0.60mm IC Package COB Display Type STN-LCD Blue Touch Panel Optional No Sunlight Readable No Response Time(Typ) No Contrast Ratio(Typ) No Colors No Viewing Direction 6:00 Viewing Angle Range No Brightness(Typ) No Backlight Color White Color Backlight Current (Typ) 75mA Power Supply(Typ) 3.3V, 5V Supply Current for LCM(Max) 2000uA Operating Temperature -20℃~70℃ Storage Temperature -30℃~80℃ Related Documents Datasheet Interfacing scheme Source Code Package Includes 1x White on Blue 20×4 LCD Module with operating voltage of 5.0V
