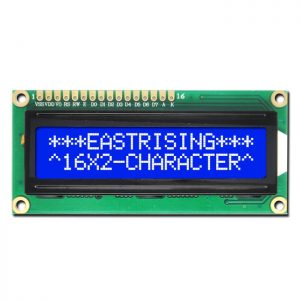

Description HD44780 compatible 16×2 White on Blue LCD Module. The typical operating voltage for these display modules is 5.0V. Technical Specifications Gross Weight (kg): 0.0400 Connection: Pin Header Display Format: 16×2 Character Outline Dimension: 80.0(W)x36.0(H)x11.5(T)mm Visual Area: 64.50×14.50mm Active Area: 55.45×10.85mm Character Size: 2.95×5.15mm Dot (Pixel) Size: 0.55×0.50mm Dot Pitch: 0.60×0.55mm IC Package: COB IC or Equivalent: AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 Interface 6800 4-bit Parallel , 6800 8-bit Parallel Display Type: STN-LCD Blue Viewing Direction: 6:00 Appearance: White on Blue Backlight Color: White Color Backlight Current (Typ) 15mA Power Supply(Typ) 5V Supply Current for LCM (Max) 1500uA Operating Temp -20℃~70℃ Storage Temperature -30℃~80℃ Related Documents Datasheet Arduino 1602 LCD example Package Includes 1x White on Blue 16×2 LCD Module with operating voltage of 5.0V
