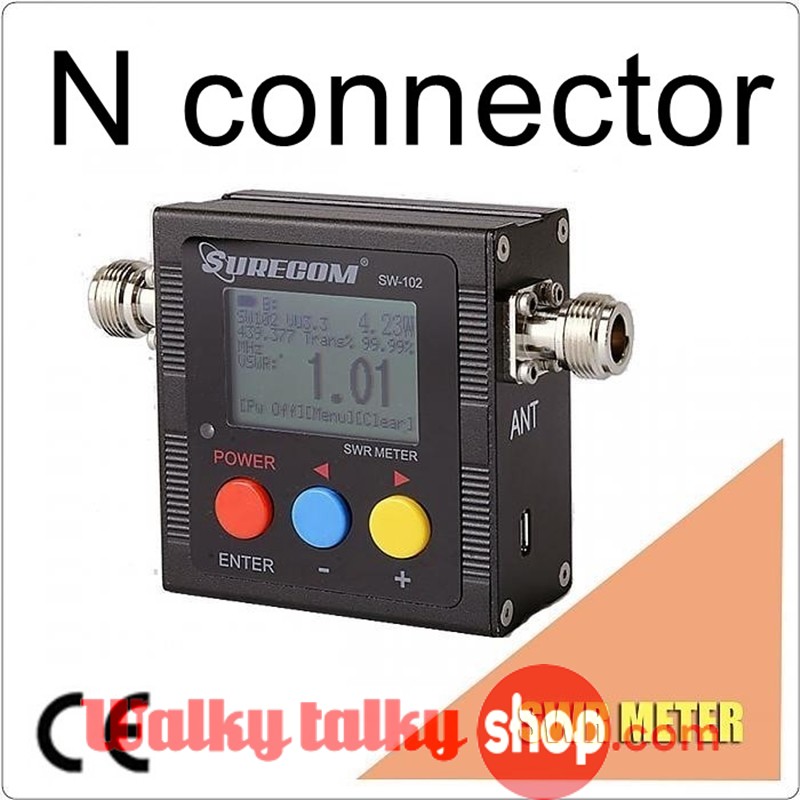

SURECOM SWR Power SW-102 SW102 VSWR 125 – 520MHz Power Meter with Frequency Counter
$15.13
$18.76
SURECOM SWR Power SW-102 SW102 VSWR 125 – 520MHz Power Meter with Frequency Counter VSWR meter Introduction VSWR. Forward and reflected power direct digital readout, without any calibration. Maximum measurable power range up to 120W. low insertion loss (0.3 decibels or less) structure allows it to be permanently connected. Build in Frequency counter . All Funtion display ( Frequency,Power , SWR,FW,RW,Battery voltage) Feature & Specification Frequency range: 125 – 520MHz Measurable power range: 1 – 120W Input Frequency counter Maximum power: 120W Impedance: 50Ω Size: W 76 X H 77 X D35 mm. Weight: <220 grams Battery : 3.7V Li-ion Rechargeable Battery * Not for the digital radio. Interface: N-J Interface MAX. Power in 120 W V.S.W.R 1.00~19.9 Frequency Ranger COVER:125MHz~520MHz Insertion Loss < 0.15dB(VHF) , < 0.25dB(UHF) Temperature 0 C~60 C Frequency counter Yes Battery Voltage Display Yes Battery Build-in 600MAH Li-ion Battery Auto Power Off 1-9 mins Size 66*68*37 (mm) Charger in 5V (micro usb) Backlight AUTO OFF 1-9 mins Interface (in and out ) N(SL16) Weight 220g (include battery) Connect the Output of your transceiver to “TX” and Antenna or dummy Load to “ANT”. Proper adaptor/cable is required if your device has different type of connectors. Power ON/OFF Press 2 second the [Red button] to power on or power off Funtion menu display: 1) Adj. RF Forward % 2) Adj. RF reward % 3) Adj. frequency counter time base. 4) Adj. RF Power % 5) Adj LCD dim of light 6)Adj. power off time 7)Adj. Powe test mode [0 for 1-10W hand held radio , 5 for Mobile Radio 10-100W] Funtion Memory/ SAVE: Press MENU [Blue button] Press F1 [Red button] [Select 1-6 Funtion] Press Blue button [- ], Yellow button [ ] Press the Red button for 2 seconds Press the Blue button to SAVE and EXIT SW-102 MENU SETTING 1 RF Level of” Forward “ [-99 to 99] % 2 RF Level of “Reverse” [-99 to 99] % 3 Freq.counter”Time Base [-99 to 99]% 4 Finr tune RF “Power Watt Level” [-99 to 99] % 5 LCD DIM [LCD Backlight Time] “0” is ON, “1-9” mins 6 POWER OFF “0” is ON, “1-9” mins Package Contents 1x SURECOM SW-102-UV [N – connector] VHF/UHF Power & SWR Meter 1x Power PSU 100-240V 1x Charger Cable 1x English Users Manual ***All Specifications are subject to change without notice*** Sale! Sale! Add to cart Get a Quote SWR Meter SURECOM SWR Power SW-102 SW102 VSWR 125 – 520MHz Power Meter with Frequency Counter $105.00 Original price was: $105.00.$63.00Current price is: $63.00. Add to cart
