4kw 24v SVC Off-grid Solar Inverter – 4000w 100A MPPT – Intuitive LCD Display

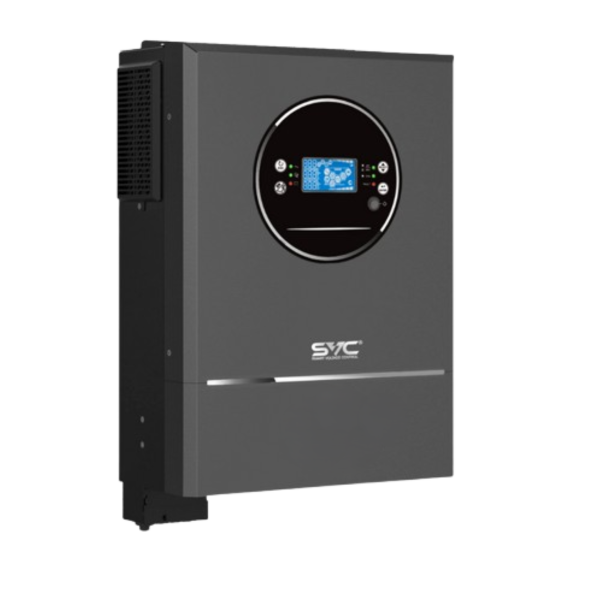

�� 4kW 24V SVC Off-Grid Solar Inverter – 4000W 100A MPPT – Intuitive LCD Display �� The 4kW 24V SVC Off-Grid Solar Inverter is a powerful and efficient solution for renewable energy systems. Designed for off-grid applications, this inverter converts DC power from solar panels into AC power for household or industrial use. With an integrated 100A MPPT (Maximum Power Point Tracking) charge controller ⚡, it maximizes solar energy utilization, ensuring high performance and reliability. The intuitive LCD display �� allows for easy monitoring and control of system parameters. ��️ Technical Specifications �� General Features: Power Rating: 4000W (4kW) ⚡ Input Voltage: 24V DC �� Output Voltage: 230V AC (±5%) ⚡ Waveform: Pure Sine Wave �� Surge Power: Up to 8000W (for short durations) �� Efficiency: ≥ 90% �� Frequency: 50Hz / 60Hz (Selectable) ⏳ Cooling System: Intelligent fan cooling ��️ Operating Temperature: -10°C to 50°C ��️ Humidity: 5% – 95% (Non-condensing) �� ☀️ Solar Charging & Battery Management: MPPT Charge Controller: 100A �� Maximum PV Input Voltage: 145V DC ⚡ PV Input Power: Up to 4000W �� Charging Current: 100A max �� Battery Type: Compatible with Lithium-ion, Lead Acid, Gel, AGM, and other deep-cycle batteries �� Battery Protection: Overcharge, Over-discharge, Reverse Polarity Protection ��️ �� User Interface & Monitoring: LCD Display: Provides real-time system information �� Communication Ports: RS232 / USB (Optional for remote monitoring) ��️ Alarm System: Audible and LED indicators for faults and warnings �� ��️ Safety & Protection Features: Overload Protection: Automatically shuts down during excessive load ⚠️ Short Circuit Protection: Prevents damage to inverter and connected appliances ⚡ Overtemperature Protection: Shuts down in case of overheating �� Input Overvoltage / Undervoltage Protection: Ensures battery safety �� Reverse Polarity Protection: Prevents damage due to incorrect wiring �� �� Applications The 4kW 24V SVC Off-Grid Solar Inverter is designed for various off-grid and backup power applications, including: �� Residential Solar Systems Provides reliable power for homes in remote areas �� Supports appliances such as lighting, TVs, fans, and refrigerators ��️ �� Commercial & Industrial Use Ideal for small businesses, shops, and offices requiring uninterrupted power �� Can power computers, networking equipment, and essential machinery ��️ �� Agricultural & Farming Operations Powers water pumps, irrigation systems, and farming equipment �� Suitable for rural areas with unreliable grid access �� ��️ Remote Cabins & Off-Grid Living Supplies power for cabins, RVs, boats, and other remote locations �� Compatible with solar battery storage for 24/7 energy supply �� ⚡ Emergency Backup Power Acts as a backup power source for homes and businesses during grid failures ⚠️ Ensures continuous operation of critical devices �� ��️ Maintenance & Best Practices To ensure optimal performance and longevity, regular maintenance of the 4kW 24V SVC Off-Grid Solar Inverter is essential. �� Routine Maintenance: ✅ Check Battery Connections: Ensure all terminals are tight and free from corrosion ��✅ Monitor LCD Display: Regularly check for any error messages or abnormal readings ��✅ Clean Solar Panels: Keep panels free of dust and debris for maximum efficiency ��✅ Inspect Wiring & Connections: Look for signs of wear, loose connections, or damaged cables ��✅ Ensure Proper Ventilation: Keep the inverter in a well-ventilated area to prevent overheating ��️ �� Troubleshooting Common Issues: ⚠️ Low Battery Warning: Check battery voltage and ensure proper charging ��⚠️ Overload Shutdown: Reduce connected load or upgrade to a higher capacity inverter ⚡⚠️ No Output Power: Verify proper battery connections and PV input voltage ��⚠️ Overtemperature Alert: Improve ventilation and ensure cooling fans are functioning ��️ �� Long-Term Care: �� Firmware Updates: If applicable, update the inverter’s software for improved performance ��️�� Battery Maintenance: Replace old or faulty batteries to maintain system efficiency ����️ Professional Inspection: Have the system checked by a qualified technician annually �� The 4kW 24V SVC Off-Grid Solar Inverter is a robust and efficient solution for off-grid power needs, providing high efficiency, reliability, and ease of use. With its 100A MPPT controller, pure sine wave output, and advanced protection features ��️, it ensures uninterrupted power supply for residential, commercial, and industrial applications. ������ Categories: Solar & Renewable Energy, Solar Inverters Tag: Solar Inverter
