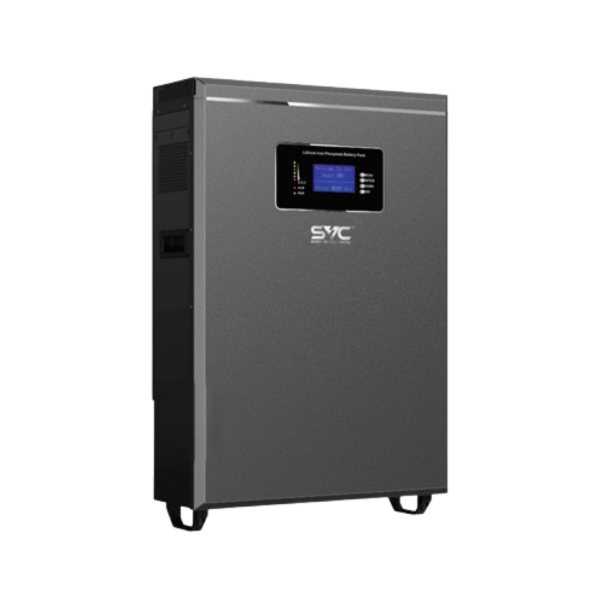

5.12kw 48v SVC Lithium Solar Battery – Advanced LiFePO4

�� 5.12kW 48V SVC Lithium Solar Battery – Advanced LiFePO4 ⚡ The 5.12kW 48V SVC Lithium Solar Battery is a high-performance energy storage solution based on LiFePO4 (Lithium Iron Phosphate) technology. It is designed for use in solar power systems ☀️, off-grid applications ��, and backup power solutions ��. This battery provides superior cycle life ��, efficiency ⚡, and safety ��️ compared to traditional lead-acid or other lithium battery chemistries. �� Technical Specifications �� Parameter �� Specification �� Battery Type Lithium Iron Phosphate (LiFePO4) ⚡ Nominal Energy 5.12 kWh ⚡ Nominal Voltage 48V (typically 51.2V for LiFePO4) �� Nominal Capacity 100Ah �� Operating Voltage Range 44.8V – 57.6V ⚡ Maximum Charge Voltage 57.6V ⚡ Discharge Cut-off Voltage 44.8V �� Recommended Charge Current 50A �� Maximum Charge Current 100A ⚡ Maximum Continuous Discharge Current 100A ⚡ Peak Discharge Current 150A (for short durations) ��️ Battery Management System (BMS) Built-in with protections (overcharge, over-discharge, short circuit, temperature) �� Cycle Life 6000 cycles at 80% Depth of Discharge (DOD) ��️ Operating Temperature Range Charge: 0°C to 55°C, Discharge: -20°C to 60°C �� Communication Interface RS485 / RS232 / CAN �� Scalability Supports parallel connection for increased capacity �� Enclosure Protection Rating IP65 (dustproof & water-resistant) ⚖️ Weight ~45-50 kg (varies by manufacturer) �� Dimensions Approx. 450mm x 480mm x 170mm (varies by model) ��️ Mounting Type Wall-mounted or Rack-mounted �� Warranty Typically 5–10 years �� Applications The 5.12kWh 48V SVC Lithium Solar Battery is suitable for a variety of energy storage and backup power applications, including: �� Residential Solar Energy Storage Stores excess solar energy for use during nighttime or grid outages. Enables self-consumption and reduces reliance on the grid. �� Off-Grid and Hybrid Solar Systems Ideal for homes, cabins, and remote locations without grid access. Works efficiently with solar charge controllers and inverters. ⚡ Uninterruptible Power Supply (UPS) & Backup Power Provides backup power for homes and businesses in case of power failures. Ensures stable power for critical applications like medical equipment and communication systems. �� Commercial & Industrial Energy Storage Supports peak shaving to reduce electricity bills. Used for energy management in businesses and factories. �� Telecommunications and Data Centers Supplies reliable backup power to telecom towers and IT infrastructure. Ensures continuous operation during grid failures. �� Electric Vehicles and Marine Applications Can be used in electric boats, golf carts, and industrial vehicles. ��️ Maintenance & Safety Guidelines Although LiFePO4 batteries require minimal maintenance compared to lead-acid batteries, following proper guidelines ensures longevity and safety. ✅ Regular Maintenance �� Monitor Battery Health: Use the BMS or monitoring software to track voltage, temperature, and charge cycles. �� Keep Terminals Clean: Check and clean battery terminals to ensure good electrical contact. �� Inspect Wiring & Connections: Ensure all cables and connectors are secure to prevent power loss or overheating. �� Firmware Updates: If the battery has a smart BMS, update firmware as recommended by the manufacturer. ⚡ Charging & Discharging �� Use a Compatible Charger: Ensure the battery charger matches the battery’s voltage and charge profile. �� Avoid Overcharging: Do not exceed the recommended charge voltage (57.6V). The built-in BMS will help prevent this. �� Prevent Deep Discharges: Avoid discharging the battery below 44.8V to extend cycle life. �� Storage & Handling ❄️ Store in a Cool, Dry Place: Ideal storage temperature is 10°C – 30°C. Avoid direct sunlight or extreme temperatures. ⚡ Keep Partially Charged for Long-Term Storage: If storing for months, keep the charge level at 50–60% to prevent cell degradation. �� Avoid Physical Damage: Protect the battery from drops, punctures, or excessive vibrations. ⚠️ Safety Precautions �� Fire Safety: Although LiFePO4 is safer than other lithium chemistries, use fire-resistant battery enclosures for added security. �� Avoid Water Exposure: Even with an IP65 rating, avoid submersion or prolonged moisture exposure. �� Follow Manufacturer Guidelines: Always adhere to recommended operational and installation guidelines. The 5.12kWh 48V SVC Lithium Solar Battery is a highly efficient ⚡, safe ��️, and reliable �� energy storage solution. It is ideal for solar energy storage ☀️, backup power ��, off-grid applications ��, and industrial energy management ��. With minimal maintenance �� and built-in BMS protection ��, it ensures a stable and durable power supply for years to come. Categories: Solar & Renewable Energy, Solar Inverters Tags: 5kw battery, Battery, Lithium Battery, Solar Battery
