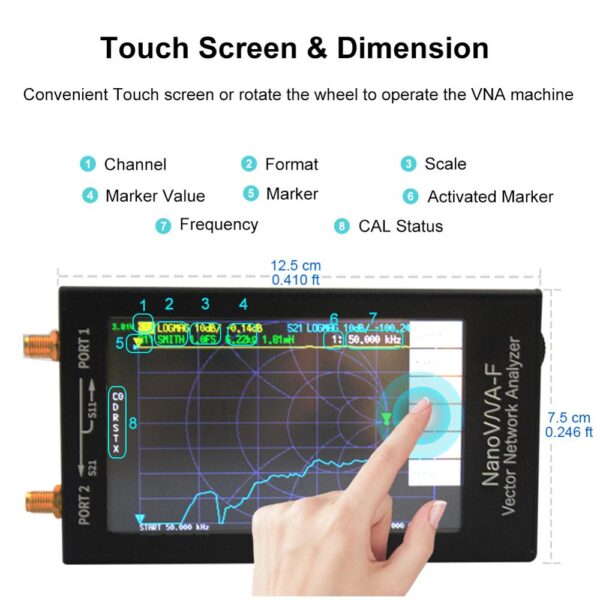

2020 Latest NanoVNA NanoVNA-F VNA HF VHF UHF Vector Network Antenna Analyzer 4.3 inches IPS LCD NanoVNA-F “Handheld Vector Network Analyzer” is a product based on the open source project of NanoVNA, which is more professional and practical. It includes a 4.3-inch IPS TFT LCD touching screen for clearer. Specifications: Main material: PCB Color: black Type: with battery, without battery (optional) Battery: 1 * lithium battery, 3.7V, 5000mAh Measurement frequency: 50KHz~1000MHz RF output: -13dBm (Max.-9dBm) Frequency accuracy: <0.5PPM Port SWR: ＜1.1 Display: 4.3 inch IPS TFT (800*480) USB interface: USB Type-C Communication mode: CDC (serial) Power consumption: USB 5V 200mA, can use battery powered, maximum charging current 2A Output capacity: 5V/1A Number of calibration points: 101 Number of scanning points: 101 Display tracking: 4, Marking: 4, Setting save: 5 Scanning time: about 1.9s/time (50KHz~1000MHz full frequency band) Can measure S parameters, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on. Item size: 140 * 75 * 20mm / 5.5 * 3.0 * 0.8in Package size: 145 * 85 * 30mm / 5.7 * 3.3 * 1.2in Package weight: 600g / 1.3lb Package list: 1 * analyzer 2 * 200mm SMA-JJ RG316 Cable 1 * Set of Calibration Parts 1 * SMA-JJ Double Needle 1 * SMA Elbow (external screw inner hole to inner screw inner needle) 1 * Type-C Data Cable
