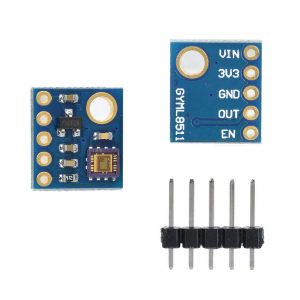

ML8511 Analog Output Ultra-Violet Light Sensor Module

Description ML8511 module is an easy to use ultraviolet light sensor. The ML8511 Sensor works by outputing an analog signal in relation to the amount of detected UV light . This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions. This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). Simply connect the output of the module to an ADC channel of microcontroller to read UV Light intensity. Applications Sunburn detectors Controlled UV Exposure chambers UV Detectors for the safety of Humans, and anmials Features Photodiode sensitive to UV-A and UV-B Embedded operational amplifier Analog voltage output Low supply current (300uA typ.) and low standby current (0.1uA typ.) Technical Specifications Model No: GY-ML8511 Operating voltage (VCC): 3 V to 5V Operating current: 120uA (typ) 190uA (max) Operating Temperature: -40°C ~ 85°C Interface Type: Analog (0- 3.3V) Detection Wavelenght Band: 280nm-390nm Peak wavelength: 365nm PCB size: 13.3 mm x 11.6 mm Weight : 1.0g (including header) Pinouts VIN : Power Connection (3V – 5V) 3.3V : Output of the on board regulator GND: 0V OUT: Analog Output EN: Enable Input  Related Documents & Downloads Hookup Guide ML8511 Datasheet ML8511 Module’s Schematic ML8511 Arduino Library Package Includes 1x ML8511 Analog Output Ultra-Violet Light Sensor Module 1x 5pin Male-Male Header
