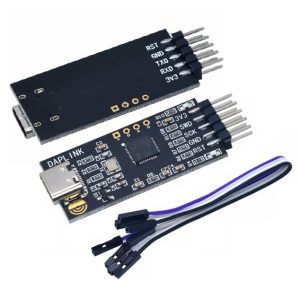

DAPLink Debug Probe Programmer Debugger USB Serial Converter

Description DAPLink Debug Probe is not just a Programmer Debugger but it also acts as a USB Serial Converter. The DAPLink adapter act cheap programmer for ARM Cortex-M STM32 MCUs. It is compatible with CMSIS-DAP and can be used together with Keil programming environment. DAPLink itself isn’t designed to support specific microcontrollers directly. Instead, it acts as a debug probe that can be interfaced with a variety of ARM Cortex-M processors. Technical Specifications Pinouts – SWD 3.3V SWD SCK GND RST Pinouts – UART 3.3V GND TXD RXD 5V Pinouts – Reprogramming Header (This header is not populated and the interface can be used for reprogramming the on board STM32 CPU for flashing / updating adapter’s firmware) V : 3.3V Power to STM32F103 G: GND reference to STM32F103 K: SW Clock for STM32F103 D: SW Data for STM32F103 Package Includes 1x DAPLink Adapter with USB-C Connector 4x dupont female-female 10cm cables
