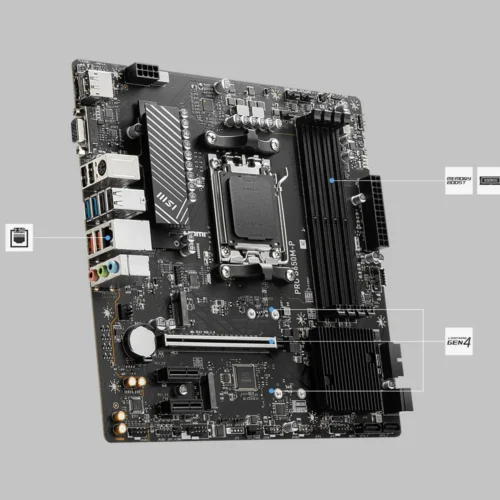

MSI PRO B650M-P ProSeries Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, 2.5Gbps LAN, mATX)

Features Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 7200 MHz (OC) Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility High Quality PCB: 6-layer PCB made by 2oz thickened copper Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength EXPERT SPECIFICATION OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit Manufacturer Number PRO B650M-P Product Condition New CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors  AMD Ryzen™ 9000- BIOS update may be required Socket AM5 Chipset AMD® B650 Chipset CPU Socket AM5 Form Factor M-ATX Memory 4 x DDR5, Maximum Memory Capacity 128GB  Memory Support DDR5 6000 (OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6000 MHz 1DPC 2R Max speed up to 6000 MHz 2DPC 1R Max speed up to 6000 MHz 2DPC 2R Max speed up to 5400 MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ LAN 1 x Realtek® 8125BG 2.5G LAN Wireless LAN – Bluetooth – Audio Realtek® ALC897 Codec  7.1-Channel High Definition Audio MULTI-GPU – STORAGE 2 x M.2 PCIe 4.0 x4 slots 4 x SATA 6Gb/s ports Onboard Graphics 1 x HDMI™ 1 x DisplayPort 1x VGA Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 1920×1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices I/O (Rear) DisplayPort VGA Keyboard / Mouse USB 2.0 2.5G LAN Audio connectors Flash BIOS Button HDMI™ USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) Expansion Slots 1 x PCI-E x16 slot 2 x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) USB (Front) 4 x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C USB (Rear) 2 x USB 3.2 Gen1 Type A 2 x USB 3.2 Gen2 Type A 4 x USB 2.0 Internal Connectors 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 3 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports Dimensions 9.60″ x 9.60″
