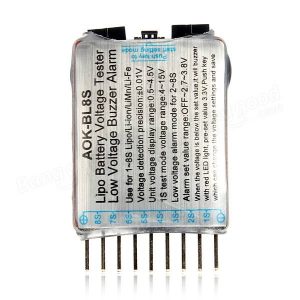

AOK-BL8S Battery Checker and Low Voltage Buzzer Alarm Module

Description Easy to use – works with any 1-8S Lipo/Li-Ion/LiMn/Li-Fe. Just plug into the balance plug and the LED will cycle through the individual cell voltages as well as list the total voltage. You can set the alarm from 2.7 to 3.8V per cell or you can turn the alarm off. Technical Specifications Voltage detection precision: 0.01V Unit Voltage display range: 0.5-4.5V Total voltage display range: 0.5-36V 1S test mode voltage range: 3.7-30V Low voltage alarm mode for 2-8S Alarm set value range: Off-2.7-3.8V Length: 39.60mm Height: 12mm Width: 25.84mm Documents and Downloads Product review video Product User Manual Package Includes 1x AOK-BL8S Battery Checker and Low Voltage Buzzer Alarm
